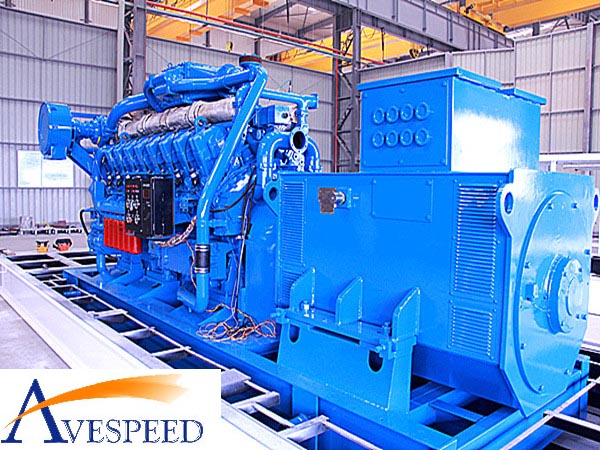

AVESPEED 1000KW/380V/50HZ/1000rpm Diesel Generator set(点击看大图)

Product NameAVESPEED 1000KW/380V/50HZ/1000rpm Diesel Generator set
Product Category Land Generator Sets
Product Description】:
  Main Specifications of Generator sets
Generator Model    500GF    600GF    800GF    1000GF    1250GF
Rated Genset Power(KW)    500    600    800    1000    1250
Engine Model    N6210ZD12    N6210ZD4    N6210ZD18    N8210ZD    N8210ZD4
Bore x Stroke (mm)    210x300
Engine Type    4-Stroke, Inline, Direct Injection, Tubocharged, Intercooled
Engine Capacity(KW)    551    662    882    1103    1471
Engine Rev. (rpm)
    50Hz@750
60Hz@720    50Hz@750
60Hz@720    50Hz@1000
60Hz@900    50Hz@1000
60Hz@900    50Hz@1000
60Hz@900
Fuel Consumption (L/h)    131    154.3    207.6    261.9    327.4

Characteristics:
    Meet with:ISO8528,IEC60034,ISO3046;
    Marine medium speed engine driven, modular construction, Diesel/HFO burning;
    Brushless self excited alternator with AVR;
    Application: Marine AUX, Land (EPS) power, Containerized power.
    Low noise, long TBO, low operating cost.

Electrical Performance:
Voltage    Voltage no load adjustment range    %    95~105
    Voltage fluctuation rate    %    ±1
    Stable voltage regulating rate    %    ±2.5
    Transient voltage regulating rate    %    ±20~-15
    Stabilizing time    s    1
    Alternator Excitation method        Brushless AVR
Frequency    Stable frequency (rev.) regulating rate    %    5
    Frequency (rev.)  fluctuation rate    %    ±0.5
    Transient frequency regulating rate    %    ±10
    Stabilizing time    s    < 5
    Frequency regulating method        Auto / Manual
Protection    Over speed:  115% Nr   A, T, S        Reverse P.:  -9.6% Pn   A, T
    LO. P :   0.25MPa A, 0.15MPa T,S      Over current: 130% In     A, T
    FW T.:    90℃ A, 95℃ T,S           Over voltage:  120% V     A, T
    LO. T:   90℃ A                     Over load:110% In    A
