Product Features:
★Adopting three-level technology and efficiency rating of up to 98.1%
★Dual input sections with independent MPPT efficiency>99.9%
★Electrolyte-free power converter to further increase the life expectancy
★High performance index within wide power range
★Advanced anti-islanding technology
★Perfect system protection, high reliability
★Intergrated DC isolation switch and string combiner(optional)
★Several communication interfaces, LCD display with several languages
★Programmable protective and running parameters
★Modular design, easy to install, operate and maintain
★Passed rigorous environmental test, suitable for inclement service applications
★IP65, suitable for outdoor installing
Technical parameters:

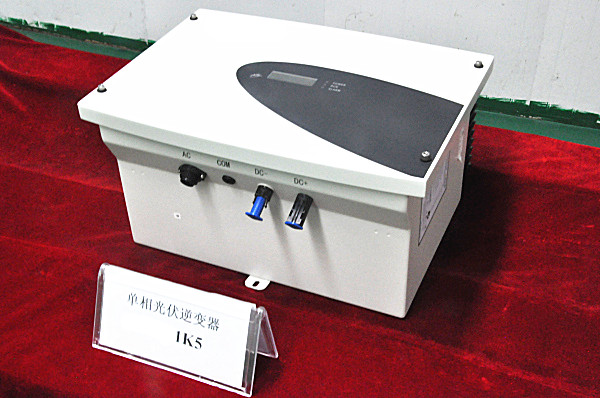

AVE-1K5TL
PV side
Max. PV power1.65kWp
Max. Permitted DC Voltage520V
Input Short-circuit Current12.5A
Max. Permitted DC Current10A
MPPT Points1
String Number1
MPPT range125~420Vdc
PV Start Voltage150Vdc
MPPT Voltage Range99.9%
Max. Inverter Feedback Current to the Array0A
Grid side
Rated Output Power1.5kW
Max. Output Current6.9A
THD of Grid Current<3%
Power Factor>0.99
Max. efficiency96.5%
European efficiency 95.5%
Output Voltage180~260Vac
Permitted Grid Frequency Range47.5~51.5Hz
Standby Power Consumption5W
Nighttime Power Consumption0W
Grid MonitoringAccording to VDE0126-1-1 guidelines
Communication InterfaceRS485/Ethernet (optional)/GPRS(optional)
Man-machine InterfaceLCD
Environmental Conditions and safety
Protective LevelIP65
Cooling Natural Cooling
Operating Temperature Range-25~+60℃
Relative Humidity Range0~98% (non condensing)
Mounting Altitude2000m; above 2000m need derate operating
Noise Emissions<45dB@1m
Meet the StandardsIEC 62103; EN 50178; IEC/EN 62109-2; IEC/EN 61000-6-12007;IEC/EN 61000-6-3:2007;IEC/EN 61000-3-3:2007; AS/NZS 3100:2009; AS4777.2:2005; AS4777.3:2005
Mechanical
Dimensions (W/H/D)325/475/170 (mm)
Weight14kg |
