Model |

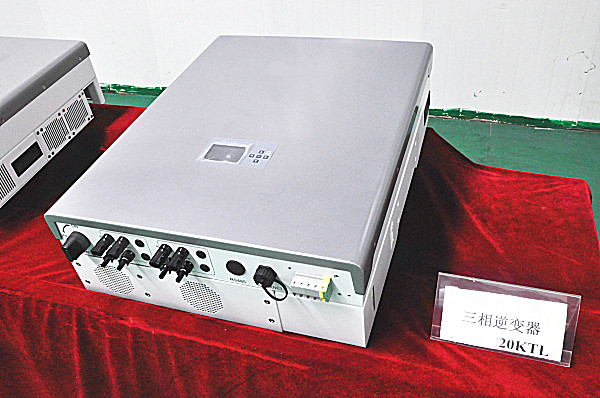

AVE--N20KTL |
|
PV side |
|
Max. PV power |
20800Wp |
|
Max. permitted DC Voltage |
1000Vdc |
|
|
2×30A |
|
Max. permitted DC current |
2×25A |
|
MPPT number/Input points of each MPPT |
2/4 |
|
MPPT voltage range at full power |
410～800Vdc |
|
PV Start Voltage |
300Vdc |
|
MPPT efficiency |
99.90% |
|
Max Inverter feedback Current to the Array |
0A |
|
Grid side |
|
Rated output power |
20kW |
|
Max.output current |
30A |
|
THD of grid current |
<3% |
|
Power factor |
>0.99(adj. ±0.9) |
|
Max. Efficiency |
98.10% |
|
European efficiency |
97.70% |
|
Output voltage |
320～450Vac 3～ |
|
Permitted grid frequency range |
47.5～51.5Hz |
|
Nighttime power consumption |
<1W |
|
Grid monitoring |
|
|
communication interface |
|
|
Man-machine interface |
LCD |
|
|
|
Isolation |
Transfomerless |
|
Protection level |
IP65 |
|
Cooling |
Air cooling |
|
Operating temperature range |
-25～+60℃(above 45℃need derate operating ) |
|
Relative humidity range |
15-95% (non condensing) |
|
Mounting altitude |
2000m；above 2000m need derate operating |
|
Noise emissions |
＜50dB |
|
lEC/EN 62109-2;lEC 61727;lEC 62116;VDE-AR-N 4105(or CGC/GF004:2011);IEC/EN6100-6-2 ; IEC/EN6100-6-4 ; IEC/EN6100-3-3 ; ENEL-Guide(Italy);G83；AS/NZS3100.2;AS4777.2;AS4777.3;EN 50178;lEC/EN 62109-1; |
|
|
|
Dimensions (W × H × D) |
|
|
Weight |
45kg |
