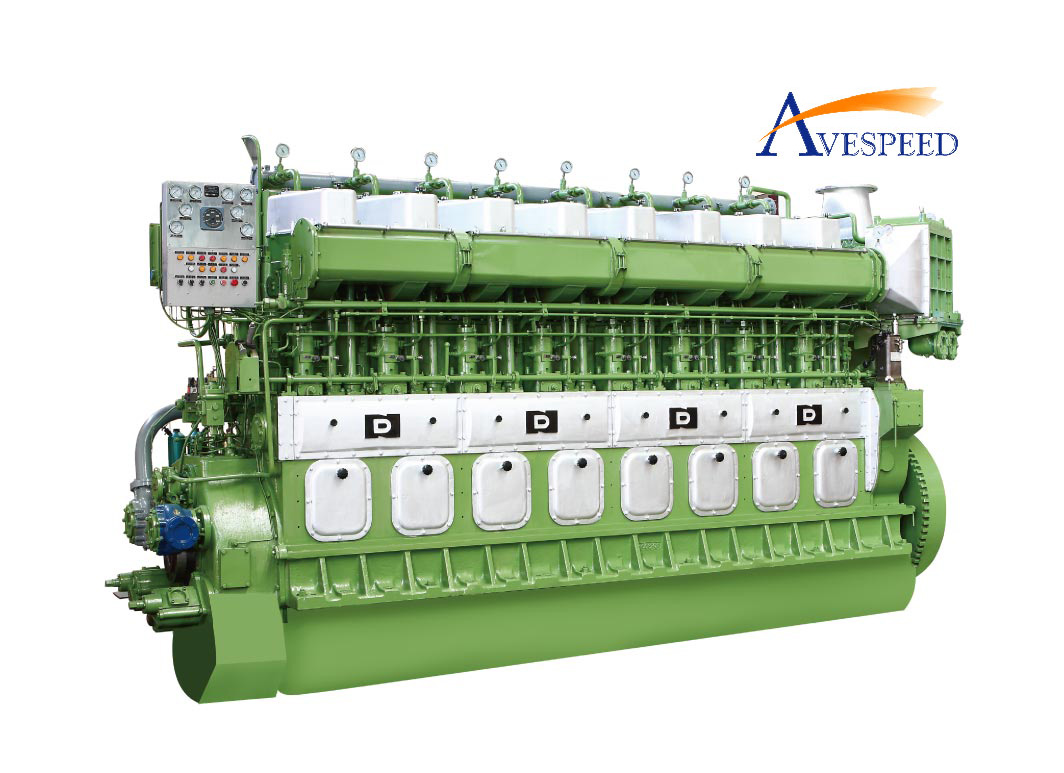

DN8340 Marine Diesel Engines

Characteristics:

Meet with: IS03046, IS08178

Main application: tugboats/oil tankers

container ships

passenger and cargo ships

engineering vessels

low fuel consumption, high capacity of loading,

reliable running, convenient operation,HFO capability

DN8340 Main Technical Specifications of Series DN8340 Marine Diesel Engines

model (starboard)DN8340ZC   DN8340ZC2  DN8340ZC4  DN8340ZC6  DN8340ZC8   DN8340ZC10

      (port)     DN8340ZCl   DN8340ZC3   DN8340ZC5   DN8340ZC7  DN8340ZC9   DN8340ZC l

type            In-line, 4-Stroke, Water Cooling, Direct Injection, Turbocharged, Intercooling, Irreversible

Rated Output (kW)   4500        4410          4045          3676          3310           2940

Rated Speed(r/min)   650         650           620           600            600            600

Power of One Hour(kW) 4950     4851          4449.5         4043.6         3641         3234

Crankshaft of starboard positive rotation (The vision faces to flywheel)          Clockwise

Crankshaft of port fc0sitive rotation (The vision aces to flywheel)           Counter -clockwise

Fuel Oil Consumption (g/kW.h)                                                        ≤186^+5%

Lube Oil Consumption (g/kW.h)                                                        ≤1.0

Starting Method                                          Compressed air starting

Cooling Method                                           Close circuit water cooling

Overall Dimension (LxBxH)(mm)                              6820 x 1950 x 3850

Net Weight (kg)                                                   48000

Note: above parameters are for reference only. The specifications of           this product are subject to changes without prior notice.
