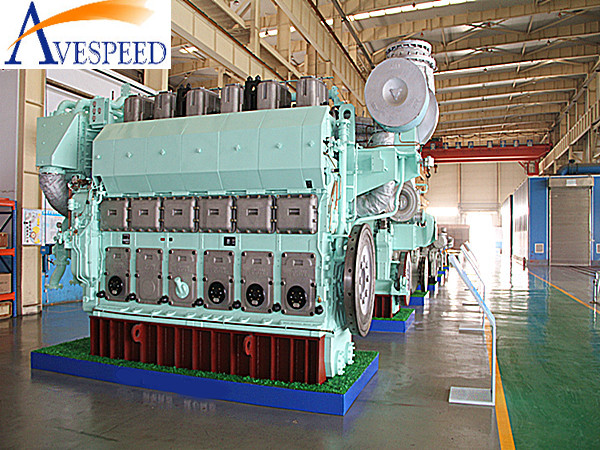

DN8320 Marine Diesel Engines

Characteristics

 Meet with: IS03046, IS08178

 Main application: tugboats/oil tankers

container ships

passenger and cargo ships

engineering vessels

low fuel consumption, high capacity of loading,

reliable running, convenient operation, HFO capability

DN8320 Main Technical Specifications of Series DN8320 Marine Diesel Engines

Model (Starboard)        DN8320ZC14B   DN8320ZC6B   DN8320ZC8B

(Port)            DN8320ZC15B   DN8320ZC7B    DN8320ZC9B

Type                In-line, 4-Stroke, Water Cooling, Direct Injection, Turbocharged, Intercooling, Irreversible

Rated Output(kW)            2970                  3089            3310

Rated Speed(r/min)           650                    650              675

Crankshaft of starboard positive rotation (The vision faces to flywheel)    Clockwise

Crankshaft of port fc0sitive rotation (The vision aces to flywheel)     Counter-clockwise

Fuel Oil Consumption(g/kW.h)                            ≤195^+5%

Lube Oil Consumption (g/kW.h)                            ≤1.0

Starting Method                             Compressed air starting

Cooling Method                                Close circuit cycle

Overall Dimension (LxBxH) (mm)                 6085 x 2125 x 3314

Net Weight(kg)                                     34000

Note: above parameters are for reference only. The specifications of this product are subject to changes without prior notice.
