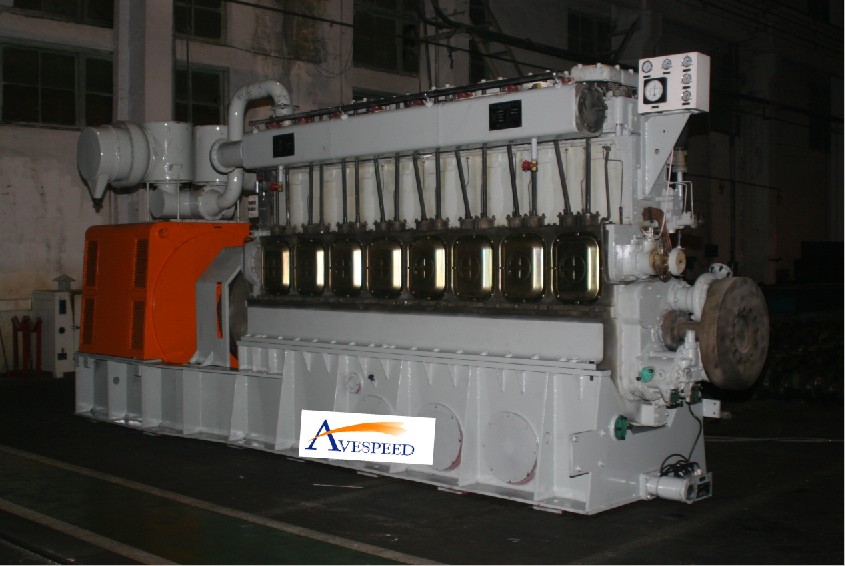

Avespeed/Solar 1204kw-15000kw gas generator set
Solar was registered in San Diego city, California, USA in 1927. Solar have produced 12000units natural gas gen sets which have been sold to more than 90 countries in the world and operated more than 1000000000hours. Solar is the biggest manufacture of industrial machine in the world (1MW to 15MW). It became a sole subsidiary of caterpillar(USA)in 1981. At present, it has sold more than 200 units gas gen-set in china and installed more than 150 units.
Coke oven gas:
Gas in the coke plant
Domestic coke plants are exhausting the coke oven gas into air directly
Polluted atmosphere
Be used to generate and reduce education by gas gen-set
Containing high H2
Many kinds of impurity, H2S, Benzene, Tar, etc
Process of disposing coke oven gas:
Coke oven gas line add ammonia to decline temperature to 700-80 ℃/ liquid separator (separate gas and other liquid like ammonal)/rail cooler(decline temperature 83-23℃ through cycle water)/roots blower (increase pressure to 0.3 MPa)/decoking by electromagnetic filed/ ammonia removal tower(decline ammonia to less than 8G/L)/benzene removal tower (remove benzene, naphthalene etc.,)/wet decoking(remove H2S by steam)/gas tank/dry decoking/compressor/Gan gen-set
The first domestic project of coke oven gas gen-set
One unit gold-cow 60gas gen-set ( double fuel system)
One unit non-supplemental firing afterheat boiler
Two units of the 3rd supercharge
Operated from April 1st, 2006
Solar nominal performance-ISO conditions
Product |
Power |
Exhaust flow |
Fuel input |
Fuel input |
Steam flow |
Additional fuel |
unfired |
fired |
|
KW |
LB/HR |
Deg F |
MMBtu/HR |
LB/HR |
LB/HR |
MMBtu/HR |
Saturn 20/1601 |
1024 |
51888 |
942 |
1689 |
8471 |
18396 |
972 |
Centaur 40/4701 |
3515 |
147718 |
819 |
4303 |
18589 |
52469 |
3264 |
Centaur 50/6201 |
4600 |
151411 |
949 |
5349 |
25045 |
53676 |
2807 |
Taurus 60/7801 |
5670 |
172523 |
952 |
614 |
28825 |
61660 |
3220 |
Taurus 70/10301 |
7520 |
213837 |
906 |
75.94 |
32556 |
75855 |
4218 |
Mars 90/13000 |
9451 |
318755 |
868 |
101.2 |
448471 |
1131138 |
6619 |
Mars 100/15000 |
10685 |
331545 |
908 |
112.4 |
50680 |
117374 |
6521 |
Titan 130/19501 |
15000 |
395141 |
925 |
145.4 |
60341 |
140027 |
7764 |
ISO conditions: 59F ambient, NO inlet/exhaust loss, seal level, non-solo NOX
Boiler conditions: steam P=150 psig, 100% saturated steam, economizer approach T=15F, feel water inlet T=210F, boiler inlet T=212F, pinch T=25F, radiation loss=0%, diverter leakage=0%, blow down loss=0% supplemental firing to 1600F
