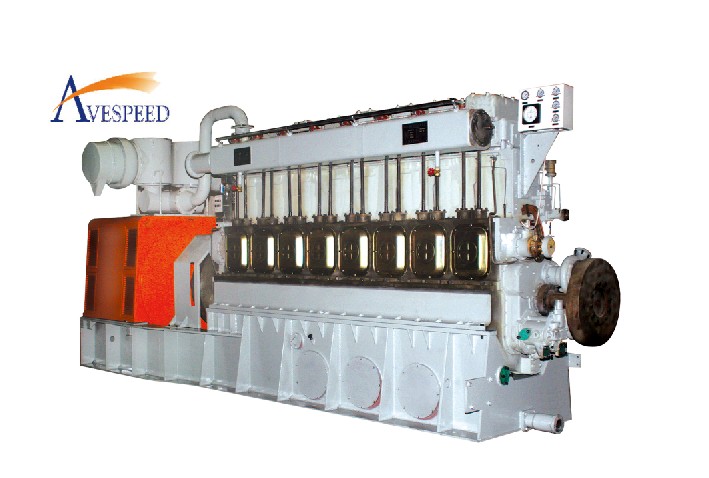

Avespeed/WAUKESHA 140KW-3250KW series natural gas gen-set
WAUKESHA produces a complete natural gas engine series and its design can almost adapt to power and compression requirements of different industrial use.
Waukesha manufactures spark plug ignition gas engines and engine driven generator sets. These products are used universally in on-spot air compression, power generation and driving other machines. Waukesha is the only CFR engine manufacture authorized by ASTM and the pioneer in gas generator sets industry.
ATGLTM series is the biggest engine for its volume and horsepower. This engines series are designed for duration, strength, stability and driven force. It is well known for its skillfulness and high efficiency.
VHPTM series is the backbone of WAUKESHA engine series and the most popular one in engine family tree. Customers' preference enables us to improve on this series engine. Its reliability and efficiency are always at a high level.
VGFTM and VSG series gas engine-enjoying compact design and high speed, can supply large power but do not occupy much space.
WAUKESHA
|
generator configuration table |
|
Remote radiator cooling (kWe) 50Hz |
Engines only (kWe) 50Hz |
|
continuous |
standby |
continuous |
|
Engine family |
Model |
1000 rpm |
1000 rpm |
1000 rpm |
|
ATGLTM
510% overload not available |
16V-AT27GL
12V-AT27GL
8L-AT27GL |
32505
2220
1480 |
3250
2440
1630 |
33565
2335
1560 |
|
Engine family |
Model |
1500 rpm |
- |
1500 rpm |
|
TPGTM
7No overload allowed |
APG1000 |
10007 |
- |
10387 |
|
Model |
1500 rpm |
- |
1500 rpm |
|
APG2000
APG3000 |
21007
32007 |
|
22007
33007 |
|
Engine family |
Model |
1000 rpm |
1000 rpm |
1000 rpm |
|
1engine available with low fuel pressure system (LFPS) with the same ratings. Refer to page 15 for LFPS ambient and altitude adjustments.
7no overload allowed |
VHP9500GSI
VHP9500GI
VHP7104GSI
VHP7104GSID
VHP7100GSI
VHP7100GSID
VHP7100GL
VHP7100G
VHP5904LT
VHP5904LTD
VHP5904GSI
VHP5904GSID
VHP5904G
VHP3604GSI
VHP3604GSID
VHP3600G |
1175
1175
11007
11001,7
875
8751
875
635
9007
9001,7
9007
9001,7
475
5407
5401,7
315 |
1459
1295
1100
11001
1075
10751
965
710
940
9001
900
9001
525
540
5401
350 |
1224
1224
11537
11531,7
919
9191
919
668
9477
9471,7
9477
9471,7
550
5737
5731,7
340 |
|
Engine family |
Model |
1500 rpm |
1500 rpm |
1500 rpm |
|
VGFTM
3these power ratings require price book option code 1100 (176BMEP) and dsm. They are available continuously when applied per WKItm power and timing curve S7079-19. It is permissible to operate at up to 5% overload for two hours in each 24 hour period. 9rating is for high compression ratio pistons only |
VGF48GL
VGF48GLD
VGF48GLD/2
VGF48GSI/GSID
VGF36GL
VGF36GLD
VGF36GLD/2
VGF36GSI/GSID
VGF24GL
VGF24GLD
VGF24GLD/2
VGF24GSI/GSID
VGF18GL
VGF18GLD
VGF18GLD/2
VGF18GSI/GSID |
6853
6853
-
625
5153,9
5153
-
475
3403,9
3403
-
310
2503,9
2503
-
230 |
715
715
-
685
5359
535
-
515
3559
355
-
340
2609
260
-
255 |
7303
7303
830
660
5503,9
5503
620
500
3653,9
3653
414
330
2753,9
2753
310
250 |
|
Engine family |
Model |
1500 rpm |
1500 rpm |
1500 rpm |
|
ASGTM |
VSG11GSI/GSID |
140 |
150 |
155 |
Generator standby power rating (kWe): this rating applies to those systems used as a secondary source of electrical power, this rating is the output the system will produce continuously (no overload), 24 hours per day for the duration of the prime power source outage.
*peak shave: these ratings are based on 3400 hours per year at ISO standard reference conditions. Peak shaving and standby and ratings may reduce lifecycle intervals.
Note: kWe output is based on 0.8 power factor engine factor efficiency.
