| project |

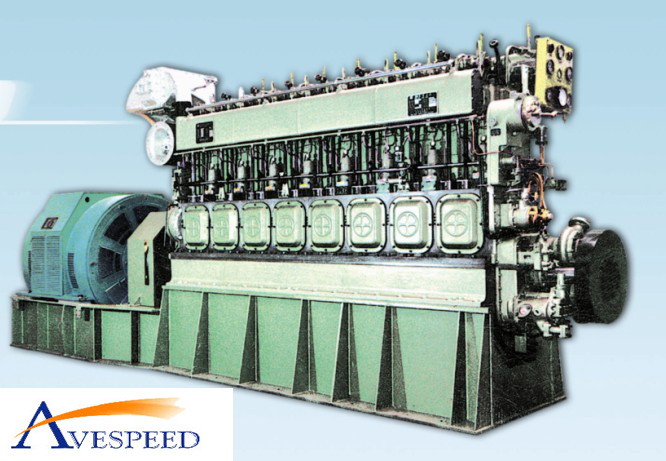

type of the sets |
| CCFJ400J-W 400GF8 |
CCFJ500J-W 500GF10 |
CCFJ750J-W 750GF3 |
| rated power(kw) |
400 |
500 |
750 |
| stand-by power(kw) |
440 |
550 |
825 |
| rated voltage(V) |
400 |
| rated current(A) |
722 |
902 |
1353 |
| rated frequency(Hz) |
50 |
rated power factor(cosΦ）
|
0.8 lagging |
| stationary voltage regulation ratio(%) |
± 2.5 |
| adapted diesel engine type |
8300D |
8300DB |
8300ZLD |
| continuous power of diesel engine(kw) |
441 |
551 |
817 |
| maximum power of diesel engine(kw) |
485 |
605 |
899 |
| nominal speed of diesel engine(r/min) |
500 |
| fuel consumption(g/kw.h) |
224 |
224 |
218 |
| lube oil cunsumotion(g/kw.h) |
2.7 |
| diesel engine start method |
started by compressed air |
| phase & consumption |
3 phase 4 wires |
| voltage regulating |
automatic and manual |
| exciting mode |
brushless |
| weight (kg） |
16000 |
18000 |
18500 |
