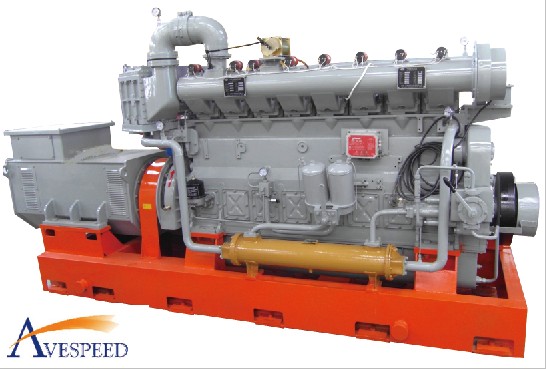

Brief Introduction Gas Generating Set
This series gas engine, based on the original engine replace original fuel system by electric spark plug ignition system and perform by changing cylinder head, piston and gas supplying system and by adding electronic speed governor, pressure reducing valve, pressure regulator, carburetor etc.
This series gas generating set are suitable for natural gas, LPG, methane, coal gas and other burnable gas. They can content various need. They can be widely used in oil gas fields, refineries breweries, sewage stations, coal mine.
| ENGINE |
type |
Z6170ZLD/T-1 |
Z8170ZLD/T-1 |
| version |
4 cycle,line type, spark plug lgnition |
| continuous power(KW) |
250 |
330 |
| firing order |
1-5-3-6-2-4 |
1-5-7-3-8-4-2-6 |
| mean effective pressure(Mpa) |
1.102 |
1.091 |
| mean piston speed(m/s) |
6.67 |
| lubricating oil consumption rated(g/kw.h) |
1 |
| gas consrmption(MJ/kw.h) |
12 |
| rated speed(r/min) |
1000 |
| start method |
started by compressed air or electrlc |
| direction(seen from flywheel end) |
anti-clockwise |
| cooling method |
water |
| timing method |
electron timing |
| scylinder diameter/stroke |
170/200 |
| |
| GENERATOR SET |
rated power(kw) |
200 |
300 |
| rated current(A) |
361 |
541 |
| rated coltage/frequency(V/Hz) |
400/50 |
| power factor (COSΦ) |
0.8(lagging) |
| phase&connection |
3 phases 4 wires |
| moder of excitation |
brushless |
| voltage regulating |
automatic |
