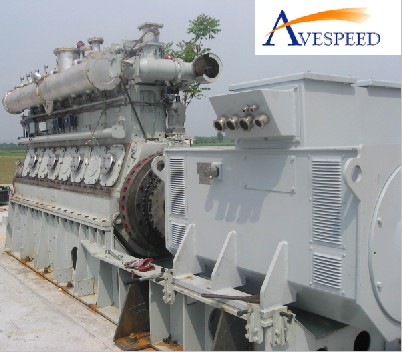

300-450kw Biomass Gasification Gas generating Set(点击看大图)

Product Name300-450kw Biomass Gasification Gas generating Set
Product Category Land Generator Sets
Product Description】:

Biomass gasification gas, which is produced by gas-firing kiln using rice hull, straw and wood power as feedstock, is now adopted as a fuel by 300-Biomass Gasification gas Engine because it is energy conservation and environmental protection. Along with the petroleum resources drying up and the environment is worsened gradually, all the world have to look for the other fungible fuel that is plentiful, cheap and little pollution. The replacing the expensive petroleum by rice hull, straw and wood power has the better economy benefit when it reduces the pollution of the rice hull and straw.
Our country has so many biomass natural resources that it can support itself easily. In addition to biomass gasification gas, there are so many low calorific value gases, such as methane (CH4), coal bed gas and associated gas in the mouth of a well. All of these provide wide using room for our biomass gasification gas engine.
According to especial working condition, many modifications have been introduced to improve the performance of the biomass gasification gas engine.
There are characteristics in advanced performance, such as compact structure, reliable operation, pretty lay out, easy operation and maintenance.
Different types of stationary engine sets are available mainly, with frequency of 50Hz and 60Hz, can satisfy the customer 6.3kv/10.5kv exportation, for them, single power set running and multi-power sets parallel running are both ok.

Engine & generator specification for 50Hz

GENERATOR  SET Items Technical specification
Set Model 400GFW 450GFW 300GFW 350GFW
Rated Power (KW) 400 450 300 350
Rated Voltage (V) 400 400 400 400
Rated Current (A) 722 812 541 631
Rated Frequency (Hz) 50
Power factor(COSΦ) 0.8(Lagging)
Mode of excitation Brushless
Phase & Connection 3 phases 4 wires

ENGINE Type of the engine 8300D/W 8300D/W-1 6300D/W 6300D/W-1
Model 4 cycle, Line type, Spark Plug Ignition
Cylinder NO. 8 6
Cylinder diameter (mm) 300
Displacement (L) 215 161
Stroke (mm) 380
Rated speed (r/min) 500 600 500 600
Rated power (KW) 440 495 330 385
Mean piston speed (m/s) 6.33 7.6 6.33 7.6
Gas consumption in full load(heat equivalent 700013000 KJ/m³)m³/h 800-1320 990-1485 660-990 770-1155
Mean effective pressure (MPa) 0.491 0.461 0.491 0.478
Compression ratio 9:1
Rotating direction (seen from flywheel end) clockwise
Firing order 1-5-7-3-8-4-2-6 1-5-3-6-2-4
Starting system Starting by compressed air
Top explosive pressure (MPa) 5.5
Exhaust temperature of cylinder (℃) 600
Temperature of gas (℃) 40
Gas pressure (kPa) 2.5
Lubricating oil consumption rated (g/kw.h) 1

Set size (L*W*H)(mm) 6394*1600*2900 5800*1600*2900
Set net weight (kg) 22000 18000
