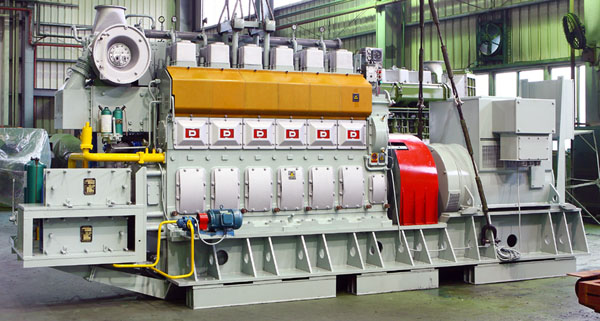

| Ⅰ. Gen-set technical specification |
| No. |
Item |
Unit |
Specification |
| 1 |
Model |
|
1000GF |
| 2 |
Rated power |
kW |
1000 |
| 3 |
Rated rev. |
rpm |
514 |
| 4 |
Rated voltage |
kV |
13.8 |
| 5 |
Rated current |
A |
52.3 |
| 6 |
Frequency |
Hz |
60Hz |
| 7 |
Power factor |
|
0.8 (lagging) |
| 8 |
Phase |
|
3-phase |
| 9 |
Voltage fluctuation rate |
% |
±1 |
| 10 |
Frequency (rev.) fluctuation rate |
% |
±0.5 |
| 11 |
Stable voltage regulating rate |
% |
±2.5 |
| 12 |
Stable frequency (rev.) regulating rate |
% |
5 |
| 13 |
Transient voltage regulating rate |
% |
±20～-15 |
| 14 |
Stabilizing time |
s |
5 |
| 15 |
Voltage regulating method |
|
Auto |
| 16 |
Speed Governor |
|
Mechanical hydraulic |
| 17 |
Frequency regulating method |
|
Manual |
| 18 |
Lubricating method |
|
Pressure lubricating |
| 19 |
Cooling method |
|
Close circuit of fresh cooling water |
| 20 |
Coupling |
|
Flexible |
| 21 |
Painting color |
|
Blue |
| 22 |
Overall dimension |
mm |
6680x2350x3060 |
| 23 |
Net weight |
kg |
31500 |
| Ⅱ. Diesel engine specification |
|
|
| No. |
Item |
Unit |
Specification |
| 1 |
Engine Model |
|
G6300ZD6 |
| 2 |
Type |
|
In-line, 6-Cyls, four-stroke, direct injection, charged, inter cooled |
| 3 |
Bore |
mm |
300 |
| 4 |
Stroke |
mm |
380 |
| 5 |
Total displacemen |
L |
161 |
| 6 |
Mean piston seed |
m/s |
6.33 |
| 7 |
Rated power |
KW |
1103 |
| 8 |
Rated rev. |
rpm |
514 |
| 9 |
Overload (1 hr per 12 hrs) |
kW/rpm |
1213/500 |
| 10 |
Mean effective pressure |
Mpa |
1.65 |
| 11 |
Compression ratio |
|
13:1 |
| 12 |
Rotation direction |
|
Clockwise, from flywheel end. |
| 13 |
Firing order |
|
1-5-3-6-2-4 |
| 14 |
Specific fuel oil consumption |
g/kW.h |
200+3% |
| 15 |
Specific Lube oil consumption |
g/kW.h |
< 1.2+0.2g/kW.h |
| 16 |
Smoke |
RB |
≤0.3 |
| 17 |
Noise |
dB(A) |
105 |
| 18 |
Starting method |
|
Air Rotary valve |
| 19 |
Cooling system |
|
Fresh water cooling |
| 20 |
Lubricating system |
|
Pressure lubricating |
| 21 |
Fuel oil specification |
|
Diesel oil and 180Cst/50℃ HFO |
| 22 |
Lube oil specification |
|
CD40 with TBN according HFO |
| 23 |
Piston lifting height |
mm |
2600 |
| 24 |
Overall dimension |
mm |
4740x1580x2800 |
| 25 |
Net weight |
kg |
17500 |
| Ⅲ. Alternator specification |
|
|
| No. |
Item |
Unit |
Specification |
| 1 |
Alternator Model |
|
TF1000-14 |
| 2 |
Type |
|
Brushless generator |
| 3 |
Rated power |
kW |
1000 |
| 4 |
Rated voltage |
kV |
13.8 |
| 5 |
Rated current |
A |
52.3 |
| 6 |
Frequency |
Hz |
60 |
| 7 |
Power factor |
|
0.8 (lagging) |
| 8 |
Working condition |
|
Continuous |
| 9 |
Phase and connection |
|
3-phase |
| 10 |
Voltage regulation method |
|
Brushless, self excited AVR |
| 11 |
Insulation Class |
|
F |
| 12 |
Protection Class |
|
IP23 |
| Ⅳ Cooling tower specification |
|
|
| No. |
Item |
Unit |
Specification |
| 1 |
Cooling tower model |
|
GBL-50 |
| 2 |
Inlet temperature |
℃ |
60 |
| 3 |
Outlet |
℃ |
35 |
| 4 |
Base Plane Size |
mm |
Ф2500×3310 |
| 5 |
Blade amount |
|
4 |
| 6 |
Fan diameter |
mm |
Ф1250 |
| 7 |
Motor fan power |
kW |
3 |
| 8 |
Inlet pipe demension |
mm |
DN100 |
| 9 |
Outlet pipe demension |
mm |
DN150 |
| Ⅴ Air compressor |
|
|
| No. |
Item |
Unit |
Specification |
| 1 |
Model |
|
CZ-20/30F CZC-10/30F |
| 2 |
Type |
|
Single row vertical, differential piston two-stage compression, air cooled |
| 3 |
Exhaust capacity |
m3/h |
Min. 20 |
| 4 |
Quantity |
sets |
1 |
| 5 |
Rating pressure |
Mpa |
3 |
| 6 |
Cylinder bore |
mm |
1st stage: 102mm, 2nd stage: 90mm |
| 7 |
Piston stroke |
MM |
65 |
| 8 |
Exhaust temperature |
℃ |
Max. 85 |
| 9 |
Rotary speed |
r/min |
1000 |
| 10 |
Shaft power |
KW |
<5kW |
| 11 |
Motor |
KW |
5.5kW electric driven or diesel engine driven |
| 12 |
Overall dimensions |
mm |
970x440x700 |
| 13 |
Weight |
kg |
155 |
| Ⅵ Air Bottle |
| No. |
Item |
Unit |
Specification |
| 1 |
Model |
|
B300 |
| 2 |
Air inlet & outlet |
mm |
￠33 |
| 3 |
Working pressure |
4Mpa |
2.9 |
| 4 |
Volume |
L |
500 |
| 5 |
Overall dimensions |
mm |
￠525x2100 |
| 6 |
Weight |
kg |
468 |
| G S9-160/13.8/0.48 Power transformer |
| No. |
Item |
Unit |
Specification |
| 1 |
Type |
|
S9-160/13.8±2x2.5%/0.48 |
| 2 |
Rating |
KVA |
160 |
| 3 |
Primary Volts |
KV |
13.8 |
| 4 |
Secondary volts |
KV |
0.48 |
| 5 |
Insulation level |
|
Standard |
| Ⅶ HFO purified separator |
| No. |
Item |
Unit |
Specification |
| 1 |
Separator model |
|
KYD - 307SD |
| 2 |
Rated treating capacity (diesel) |
L/h |
3000 |
| 3 |
Operating for 600Cst/50℃ HFO |
L/h |
2000 |
| 4 |
Separating temperature |
℃ |
98 |
| 5 |
Motor power |
kW |
11 |
| 6 |
Purified oil outlet pressure |
MPa |
0.2 |
| 7 |
Weight |
kg |
1000 |
| 8 |
Demension |
mm |
1380×900×1477 |
| Ⅷ HFO Booster |
| No. |
Item |
Unit |
Specification |
| 1 |
Modle |
|
CRGD 2.0/ 3.0-CP |
| 2 |
Rated supply capacity |
L/h |
2000 |
| 3 |
Viscosity control range |
Cst |
10~15 |
| 4 |
Heating power |
kW |
100 |
| 5 |
HFO inlet temperaure |
℃ |
95~100 |
| 6 |
HFO outlet temperaure |
℃ |
128~145 |
| 7 |
Heating medium : |
|
Steam 170℃ |
| 8 |
Fuel supply pressure range . |
Mpa |
adjustable 0.2 – 1.0 |
| 9 |
Mixing tank |
L |
150 |
| 10 |
Motor Power |
kW |
4+4 |
| 11 |
Heat insulation material |
|
wool |
| 12 |
Fine filter type |
|
Auto backflushing with 20μm |
