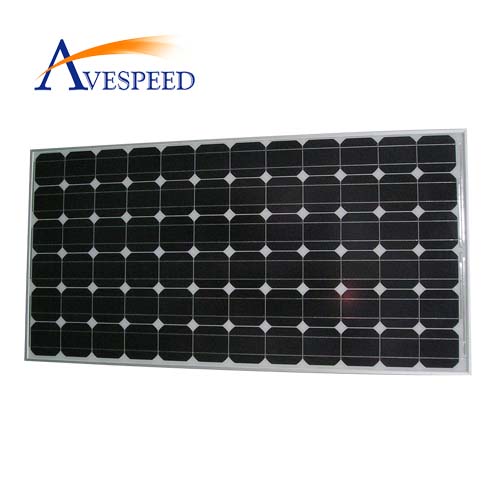

156 Series Monocrystalline Silicom Solar Module(120W-140W)(点击看大图)

Product Name156 Series Monocrystalline Silicom Solar Module(120W-140W)
Product Category Solar Panel Systems
Product Description】:

156 Series Monocrystalline Silicom Solar Module(120W-140W)

Performance datasheet for solar module
Model
AVE140D-12
AVE130D-12
AVE120D-12
Nominal power(Pm)
140Wp
130Wp
120 Wp
Power allowance
±5%
±5%
±5%
Optimized working voltage(Vm)
17.6V
17.3V
17.3V
Optimized working current(Im)
7.94A
7.51A
6.94A
Open circuit voltage(Voc)
22.2V
21.8V
21.6V
Short circuit current(Isc)
8.06A
7.85A
7.7A
Module efficiency
14%
13%
12%
Withstanding voltage
1000
Dimension of module (mm)
1482×676×35
Net weight (kg)
11.5
Packing (pcs/carton)
2
Dimension of package (mm)
1532×720×100
Volume (m3)
0.11
Gross weight (kg/ carton)
26
Dimension of pallet (mm)
1562×964×1950
Quantity in a 40’ container
22carton/pallet×14 pallet =308carton (616pcs)
Time returnable and replaceable
2 year
Power attenuation
10year≤10%,20 year≤20%
