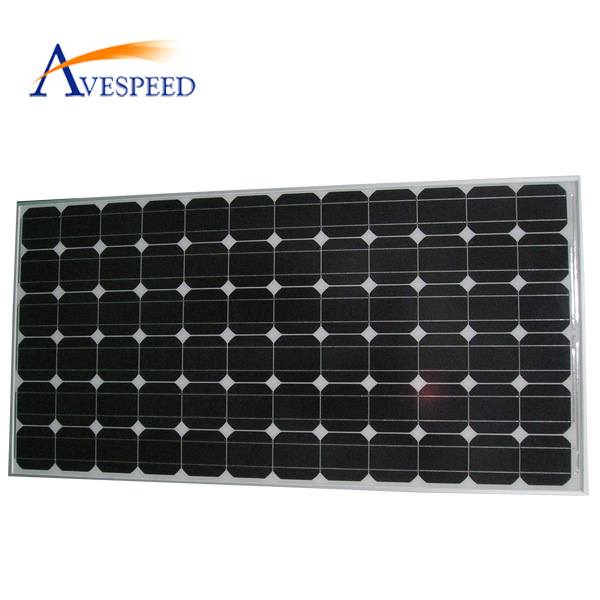

150 Series Multicrystalline Silicon Solar Module(230W-270W)
Performance datasheet for solar module
|
Model |
AV270P-24 |
AVE260P-24 |
AVE250P-24 |
AVE240P-24 |
AVE230P-24 |
|
Nominal power (Pm) |
270Wp |
260Wp |
250Wp |
240Wp |
230Wp |
|
Power allowance |
±5% |
±5% |
±5% |
±5% |
±5% |
|
Optimized working voltage (Vm) |
35.3V |
35.2V |
34.7V |
34.4V |
34.4V |
|
Optimized working current (Im) |
7.65A |
7.39A |
7.21A |
6.98A |
6.69A |
|
Open circuit voltage (Voc) |
43.8V |
43.8V |
43.6V |
43.6V |
43.2V |
|
Short circuit current (Isc) |
7.83A |
7.61A |
7.54A |
7.5A |
7.38A |
|
Module Efficiency (%) |
13.9% |
13.4% |
12.9% |
12.4% |
11.9% |
|
Withstanding voltage |
1000DC |
|
Dimension of module (㎜) |
1956×992×50 |
|
Net weight (Kg) |
23 |
|
Packing ( pcs∕carton) |
2 |
|
Dimension of package (㎜) |
2006×1036×130 |
|
Volume (m3) |
0.27 |
|
Gross weight ( Kg/carton) |
55 |
|
Dimension of pallet |
2036×1080×1970 |
|
Quantity in a 40’ container |
14carton/pallet×11pallet=154carton(308pcs) |
|
Time returnable and replaceable |
2year |
|
Power attenuation |
10year≤10%，20year≤20% |
