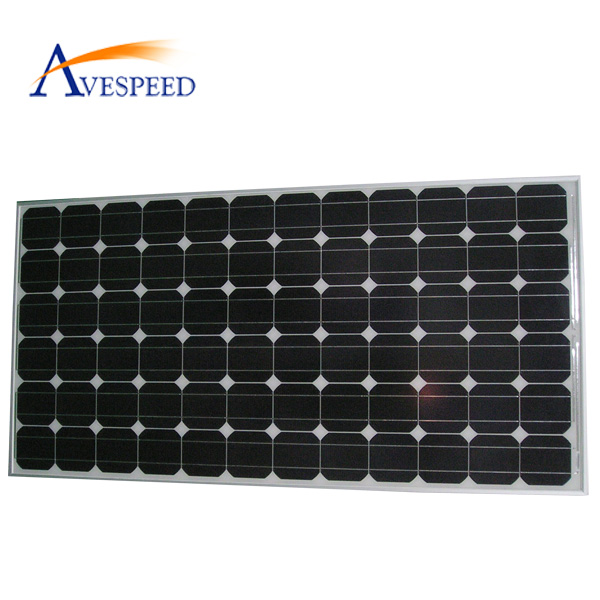

125 series Monocrystalline Silicon Solar Module(160W-180W)
Performance datasheet for solar module
|
Model |
AVE180D－24 |
AVE175D－24 |
AVE170D－24 |
AVE165D－24 |
AVE160D－24 |
|
Nominal power (Pm) |
180Wp |
175Wp |
170Wp |
165Wp |
160Wp |
|
Power allowance |
±5% |
±5% |
±5% |
±5% |
±5% |
|
Optimized working voltage (Vm) |
36V |
35.42V |
35.3V |
34.9V |
34.4V |
|
Optimized working current (Im) |
5.0 A |
4.94A |
4.82A |
4.73A |
4.65A |
|
Open circuit voltage (Voc) |
44.8V |
44.5V |
44.3V |
44.0V |
43.7V |
|
Short circuit current (Isc) |
5.51A |
5.41A |
5.25A |
5.18A |
5.07A |
|
Module efficiency |
14.1% |
13.7% |
13.3% |
12.9% |
12.5% |
|
Withstanding voltage |
DC1000V |
|
Dimension of module (㎜) |
1580×808×35 |
|
Net weight (Kg) |
15 |
|
Packing ( pcs∕carton) |
2 |
|
Dimension of package (㎜) |
1630×855×100 |
|
Volume (m3) |
0.139 |
|
Gross weight ( Kg/carton) |
35 |
|
Dimension of pallet |
1660×1100×1950 |
|
Quantity in a 40’ container |
22carton/pallet×14pallet=308carton(616pcs) |
|
Time returnable and replaceable |
2year |
|
Power attenuation |
10year≤10%，20year≤20% |
