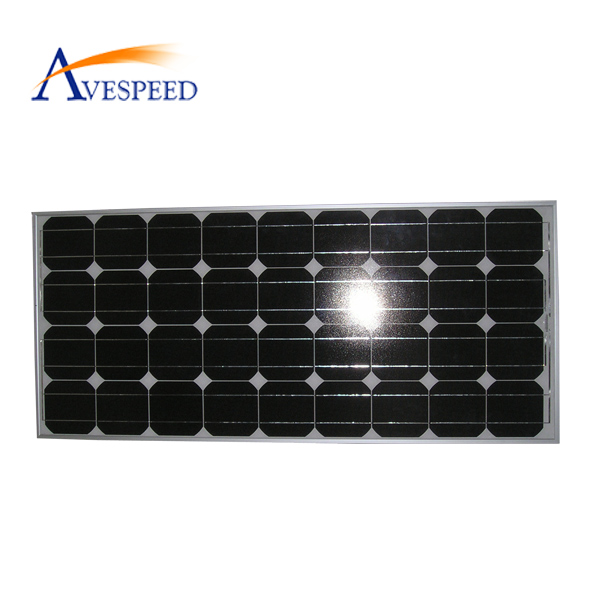

125 series Monocrystalline Silicon Solar Module(75W-85W)(点击看大图)

Product Name125 series Monocrystalline Silicon Solar Module(75W-85W)
Product Category Solar Panel Systems
Product Description】:

125 series Monocrystalline Silicon Solar Module(75W-85W)

Performance datasheet for solar module
Model
AVE085D-12
AVE080D-12
AVE075D-12
Nominal power(Pm)
85 Wp
80Wp
75 Wp
Power allowance
±5%
±5%
±5%
Optimized working voltage(Vm)
17.6V
17.2V
17.2 V
Optimized working current(Im)
4.82A
4.65A
4.36A
Open circuit voltage(Voc)
22.2V
21.8V
21.3V
Short circuit current(Isc)
5.29A
5.07A
4.88A
Module efficiency
13.1%
12.4%
11.6%
Withstanding voltage
DC715V
Dimension of module (mm)
1196*541*30
Net weight (kg)
8
Packing (pcs/carton)
2
Dimension of package (mm)
1246*585*90
Volume (m3)
0.073
Gross weight (kg/ carton)
19
Dimension of pallet (mm)
1300*740*2050
Quantity in a 20’ container
22carton/pallet×12 pallet =264 carton (528pcs)
Time returnable and replaceable
2 year
Power attenuation
10year≤10%,20 year≤20%
