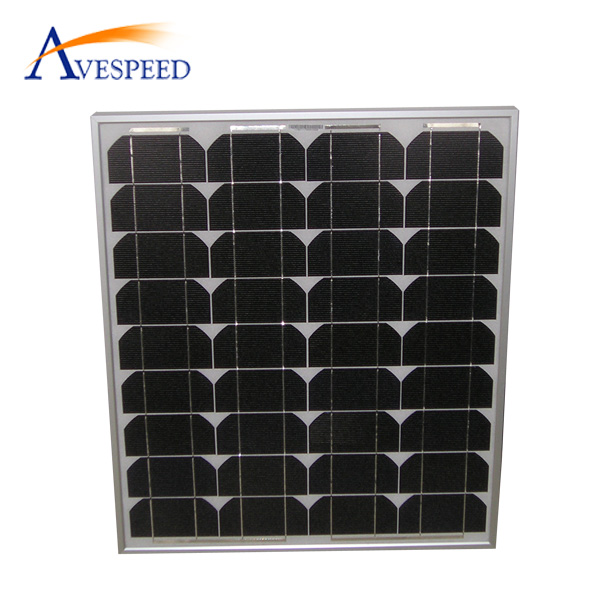

Model |
AVE40D-12 |
AVE20D-12 |
AVE10D-12 |
|
Nominal power（Pm） |
40Wp |
20Wp |
10Wp |
|
Power allowance |
±10% |
±10% |
±10% |
|
Optimized working voltage（Vm） |
17.2V |
17.5V |
16.7V |
|
Optimized working current（Im） |
2.33A |
1.14A |
0.60A |
|
Open circuit voltage（Voc） |
21.8V |
21.9V |
21.3V |
|
Short circuit current（Isc） |
2.54A |
1.19A |
0.68A |
|
Module efficiency |
11.7% |
10.2% |
8.8% |
|
Withstanding voltage |
DC715V |
|
Dimension of module (mm) |
630*541*30 |
640*306*18 |
310*368*18 |
|
Net weight (kg) |
4.5 |
2.5 |
1.5 |
|
Packing (pcs/carton) |
2 |
10 |
20 |
|
Dimension of package (mm) |
680*585*90 |
Package of inside
650*320*28 |
Package of inside
320*382*28 |
|
Package of outside
664*350*330 |
Package of outside
335*620*384 |
|
Volume (m3) |
0.036 |
0.067 |
0.077 |
|
Gross weight (kg/ carton) |
12 |
30 |
35 |
|
Dimension of pallet (mm) |
1390*700*1950 |
1382*950*1825 |
1200*800*1825 |
|
Quantity in a 20’ container |
48carton/ pallet×10 pallet =480 carton (960pcs) |
30carton/ pallet×8 pallet =240 carton (2400pcs) |
20carton/ pallet×8 pallet =160 carton (3200pcs) |
|
Time returnable and replaceable |
2 year |
|
Power attenuation |
10year≤10%，20 year≤20% |
