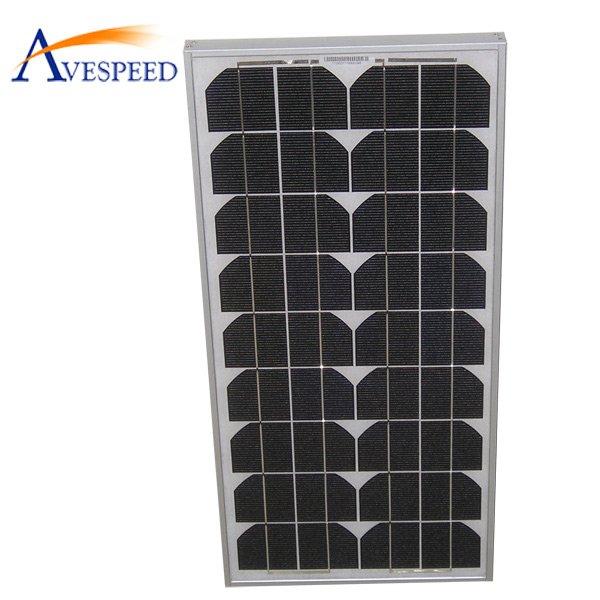

125 series Monocrystalline Silicon Solar Module(5W)(点击看大图)

Product Name125 series Monocrystalline Silicon Solar Module(5W)
Product Category Solar Panel Systems
Product Description】:

125 series Monocrystalline Silicon Solar Module(5W)

Performance datasheet for solar module
Model
AVE5D-12
Nominal power(Pm)
5Wp
Power allowance
±10%
Optimized working voltage(Vm)
16.7V
Optimized working current(Im)
0.3A
Open circuit voltage(Voc)
21.3V
Short circuit current(Isc)
0.33A
Module efficiency
7.6%
Withstanding voltage
DC715V
Dimension of module (mm)
216*306*18
Net weight (kg)
0.8
Gross weight(kg)
20
Packing (pcs/carton)
Dimension of package (mm)
Package of inside   316*230*28
Package of outside  330*620*245
Volume (m3)
0.047
Gross weight (kg/ carton)
18
Dimension of pallet (mm)
1280*1010*1825
Quantity in a 20’ container
30carton/ pallet×8 pallet =240 carton (4800pcs)
Time returnable and replaceable
2 year
Power attenuation
10 year≤10%,20 year≤20%
