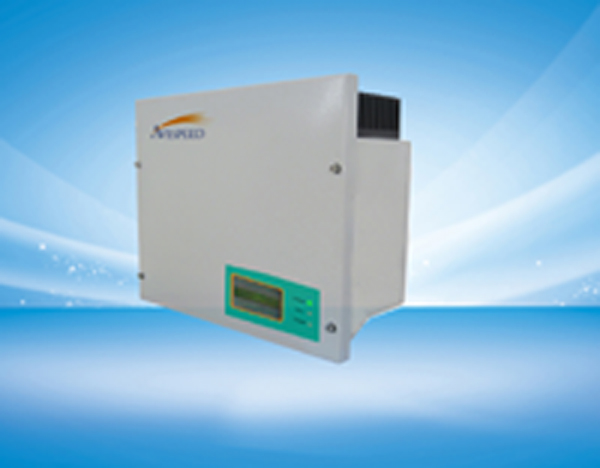

3KW PV Grid-tied Inverters(with TUV certificate)
Modle:ASV3K
Rated Power(kW):3
Output parameter
The proposed PV module power (W)):3750
Max DC input power (W):3500
MaxDC Input Voltage (Vdc): 400
Voltage (Vdc): 280
MinDC input voltage (Vdc): 150
input voltage range input voltage range:150-400
MPPT voltage range(Vdc):150-350
MaxDC input
Current (Adc):10+10
MaxDC voltage harmonic (Vpp)<10%
Input Connection plug
Input connector number (group):2
MPPT number of channels:2
Input Transient Voltage Suppressor: Yes
Ground Protection: Yes
Reverse polarity protection: Yes
Input current limit: Yes
Input Current Reverse Isolation:Yes
Export parameter
Max AC Output Power (VA):3300
Rated AC Output Power (VA):3000
Power Factor>0.99
Output current waveform distortion rate <4%
Power rated voltage(Vrms) 220/230/240 50Hz
120/240 60Hz
Power voltage range (Vrms) :According the vocal standard, grid voltage of a floating 88%-110%
Rated output current(Arms):13.0
Max output current(Arms):15.0
Rated power frequency (Hz):50
Grid grequency fluctuation range :(Hz)50/60±0.5Hz Applicable to local standards
Isolating transformer :yes
Grid connection Waterproof DIP terminal
Power disconnectDelay
Output short-circuit protection :Yes ,current conteol
Output transient voltage :Yes
Island protection: Yes, according to UL 1741/IEEE 1547/VDE0126-1-1/DK5940/AS4777
EMC protection EN61000-6-1:2007/EN61000-6-3:2007/EN61000-6-2:2005/EN61000-6-4:2007/EN61000-3-2:2006/EN61000-3-3:1995/+A1:2001/+A2:2005
Efficiency
Max efficiency>94.5
European efficiency>93.0
Packaging
Shell: IP65,indoor and outdoor installation
Weight(Kg):42.5
366x525x225
circumstance
Operating Temp (0C) : -25~ +50
Storage ambient temp (0C): -40~ +70
Elevation limit (m) :4000(tiptop temp +300C)
