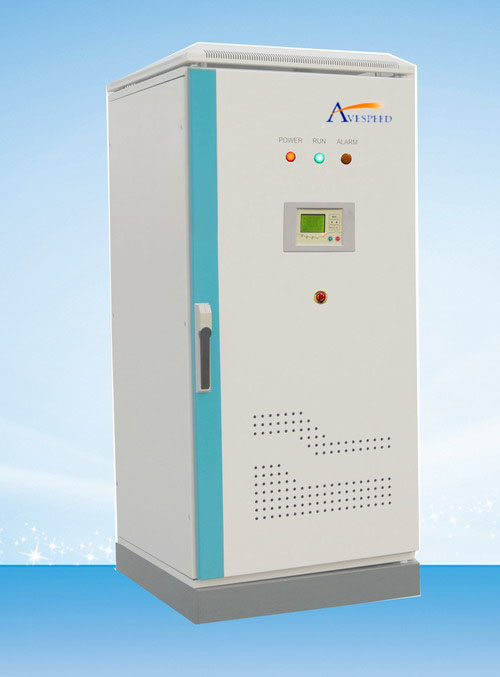

10KW PV Grid-tied Inverters(with TUV certificate)(点击看大图)

Product Name10KW PV Grid-tied Inverters(with TUV certificate)
Product Category Solar Panel Systems
Product Description】:

10KW PV Grid-tied Inverters(with TUV certificate)
Product Features:
Using advanced (IGBT) from Mitsubishi, the system efficiency is enhanced.
High conversion efficiency
Advanced technology for Maximum Power Point Tracking (MPPT)
>99%MPPT efficiency
Wide input voltage range
Efficiency design of low-frequency isolation transformer
High efficiency at wide power range
Advanced Anti-island technology
High reliability due to complete function
MPPT and CTV running modes
Multilingual LCD settings and different communication interfaces
Adjustable protection and operation parameters
Easy operation, installation and maintenance

Technical Parameters:
ASV10KC Solar inverters
Model
ASV10KC
DC Input

Max. DC Voltage
880Vdc
MPP Voltage Range
420-820Vdc
Max. DC Power
11KWp
Max. Input Current
25A
AC Output

Output power
10KW
Current THD
<3%(≥50%rated power)
Nominal Grid Voltage
320-450Vac
Nominal Grid Frequncy
50/60Hz
Power Factor
.≥0.99(≥50%rated power)
System

Max. Efficiency
95%
Euro Efficiency
93.5%
Protection Degree
IP20 (indoor)
Operating Temp.
-20~+45℃
Cooling Humidity
Controlled forced-air cooling
Relative Humidity
15%~95%, non-condensing
Comm. Interfaces
RS485/RS232/Ethern/GPRS
Display
LCD
Mechanical Data

W | H | D
600/1000/500(mm)
Weight
150kg
