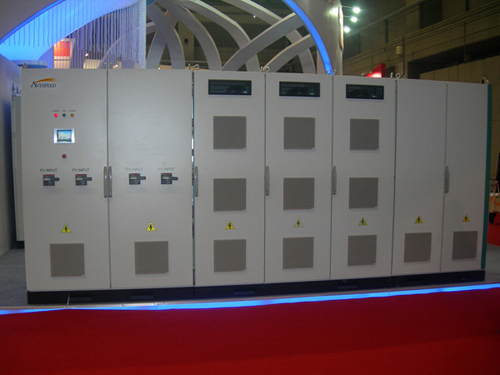

1000KW PV Grid-tied Inverters(with TUV certificate)
Product Feature:
ASV1000KC uses the fifth generation IGBT from Mitsubishi and has advanced control system. The technical features are as followings:
Use USA TI’s 28 series high-performance DSP chip
Use high-speed CPLD calculation and fiber optic transmission, fast and reliable
Advanced MPPT technology
Wide input voltage range
Without transformer
Reliable DC detecting and control
Advanced Anti-island technology
Multi-CPU control, built a sound protecting function
Advanced modular design, more safe and reliable
High transfer efficiency
≤3%output THD
Both MPPT and CVT running mode
Advanced multi-languages LCD display and powerful communication interfaces
Color touch-screen LCD display
Meet the following standards:
EN 50178:1997
PrEN 62109-1:2007
IEC 62103:2003
IEC 60364-7-712:2002 EN61000-6-2:2005
DIN VDEO126-1:2006 EN61000-6-4:2007
Technical Parameters:
Model |
ASV1000KC |
DC Input |
|
Rated Power |
1000KW |
Recommended Maximum array power |
1100KWp |
Max. DC Voltage |
880V |
MPP Voltage Range |
450-820Vdc |
Max. Input Current |
2400A |
Max. number of string |
32 |
AC Output |
|
Rated Output power |
1000KW |
Max. Efficiency |
98.8% |
Euro efficiency |
98.6% |
Night power consumption |
<200W |
Power factor |
<0.99 |
Output voltage |
270Vac |
Grid frequency range |
47.5—51.5Hz |
Current THD |
≤3% |
Isolation method |
No Isolation transformer |
Connecting |
Terminal block |
Communication interface |
RS485/RS232/GPRS/Ethernet |
Display mode and language |
Chinese and English Touch-screen LCD display |
Work |
Auto/Manual |
Noise (dB) |
<65 |
Main function |
|
Island protection |
<2s |
Short-circuit Protection |
≤0.5S |
Self-starting to restore grid-connecting |
5min |
Over current |
Automatic protection when the output current
exceeds 150% of the rated current |
Under voltage Protection |
YES |
DC over-voltage protection |
YES |
Overheat protection |
YES |
Input polarity reverse protection |
protect |
Mode |
MPPT/CVT |
Environmental requirements and other |
|
Temperature |
-20-45℃ |
Humidity |
15~95% |
Cooling |
Air-cooling |
Protection level |
Ip20(indoor) |
Dimension (w/H/D) |
4900/2200/850 |
Weight |
4000kg |
